TA 2 Turntable

Ground-Breaking Sound Definition and Imaging

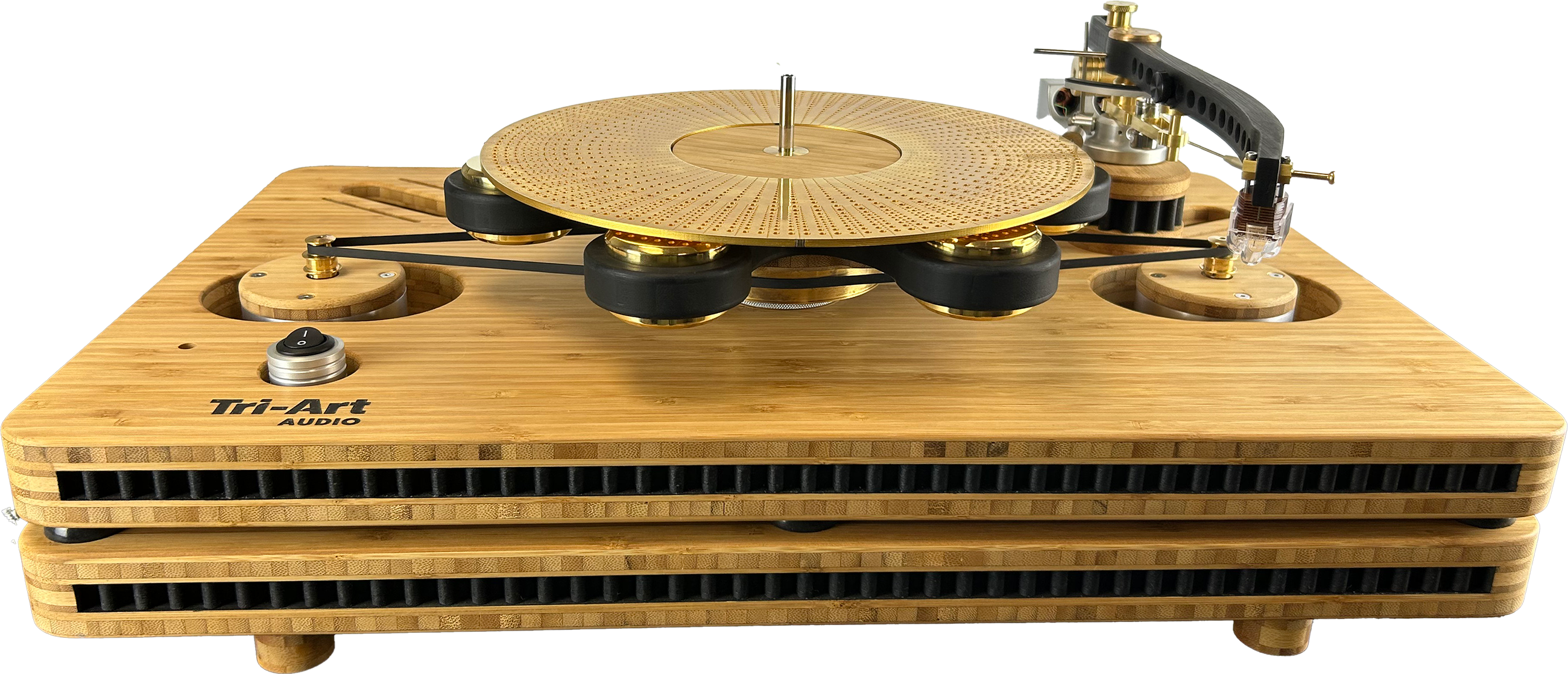

 Design Features of the TA-2 Turntable

• Bamboo [3-ply constrained bamboo] - nature’s ‘carbon fiber’ - is used in both the upper and lower plinths, which are decoupled using Sorbothane pucks.
 • Two [push-pull] high torque, high ‘speed-accuracy’ synchronous A.C. “Hurst” motors, with each mounted in an independent “vibration-decoupled” motor pod, which are attached to the lower plinth and completely decoupled from the upper plinth.
 • A removable central spindle sleeve (7.1mm) that decouples the LP-disc platter from the drive system, nullifying the transmission of vibrations from the drive system.e of a div block.
 • The rotating sub-platter uses an ultra-low friction precision machined brass, bronze, and high carbide tool-steel bearing using a ‘hyper-spherical’ Silicon-Nitride Ceramic ball bearing, resting on a precision ground thrust plate, resulting in very low friction and low-speed variance.
 • A machined bamboo hexagonal sub-platter with six polished disk weights, made from copper, each with centre brass pins designed to make use of centripetal force and inertia to maintain speed stability.
• A special “lite-weight” 7-layer gold-plated copper/epoxy disk LP-disc platter (mat) that is CNC milled and CNC drilled/perforated to provide superior energy dissipation for the LP vinyl record.
Specs & Details
Motor: Dual 24 Pole Synchronous AC Motor
Pulley: Brass Pulley Speed: 33.3 & 45 rpm
Drive: Dual-Motor Belt Drive
Platter: Bamboo Platter with Copper Inlay and Bronze Ingot Insets
Spindle: Removable Spindle Cover
Sub Platter: Aluminum Sub Platter with bronze shaft
Legs: Leveling Legs and Sorbothane Iso Feet
Bearing: Bronze Collar Spike Bearing with ABEC7 Carbonized Ceramic Ball Bearing
Plinth: Dual-Plinth
Dimensions W: 24" (60.69cm) L: 16" (40.64cm) Weight: 10kgs (22lbs)
Available Finishes: Black, Umbra, Classic/Natural, Distressed/Black, Graphite

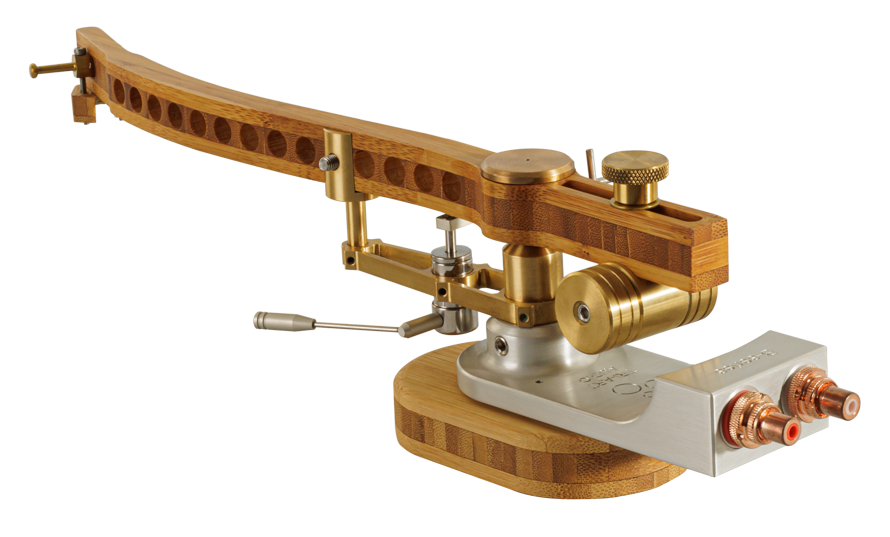

TA-2 Arm Details & Specs

Material: Three Ply Bamboo Laminate 19mm Thick
Settings: VTA & Azimuth Adjustments
Bearing: Bronze with Brass Collar Spike and Synthetic, High Viscosity Grease Bearing Arm
Wire: Cardas Wire 33 AWG Uninterrupted from Headshell Clips to Brass Female RCA Arm
Length: 12" (29.6cm) Tone Arm Mass: 19g
Anti-Skate: Anti-Skating Mechanism
Weights: Brass counter and brass azimuth weights
Available Finishes: Black, Umbra, Classic/Natural, Distressed/Black, Graphite
Arm Details The P-series TA-1 Tone Arm features the same, handmade bamboo design as our table. It is available together or separately and can also replace the arm of most other tables. The 9″ version mounts on both P-series TA-1 and B-series TA-2 Turntables. The 12″ version only mounts on the B-series Turntable. Material: Three Ply Bamboo Laminate 19mm Thick Settings: VTA & Azimuth Adjustments Bearing: Bronze with Brass Collar Spike and Synthetic, High Viscosity Grease Bearing Arm Wire: Cardas Wire 33 AWG Uninterrupted from Headshell Clips to Brass Female RCA Arm Length: 12" (29.6cm) Tone Arm Mass: 19g Anti-Skate: Anti-Skating Mechanism Weights: Brass counter and brass azimuth weights
